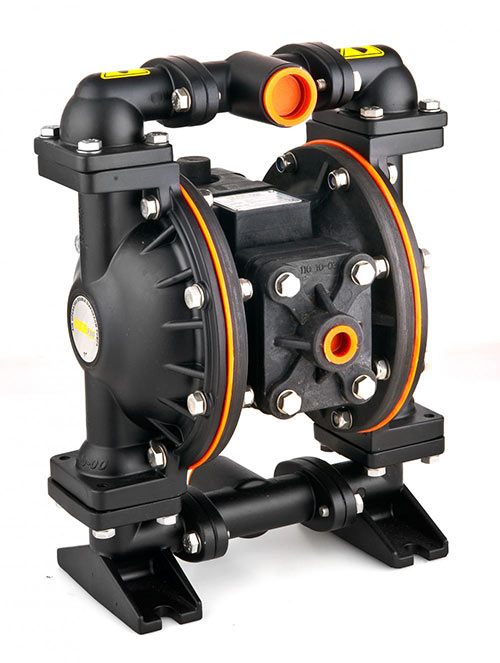

DIAPHRAGM PUMP METAL

DIAPHRAGM PUMP METAL

Max. Capacity                           : 55 lpm

Intake/Discharge Size             : 1/4″, 1/2″, 3/4″, 1″, 1 1/2″ (inch)

Fluid Discharge Pressure      : 7 bar

Main Body                                 : Aluminium, Cast Iron, Cast Stainless Steel, Alloy C.

Diaphragms                              : Santoprene, Neoprene, Buna-N, EPDM, PTFE, Viton

Balls                                          : Santoprene, Neoprene, Buna-N, EPDM, PTFE, Viton

Ball Seats                                 : Santoprene, PTFE

Air Inlet Size                            : 1/4″ (inch)

Solids – Handling                    : 3mm

Suction Depth                         : 6m

Operating Pressure Max       : 7 bar

AREAS OF USAGE:

1-CHEMICAL INDUSTRY : For transfer acids, alkalis, solvents, alcohols

2-REFINING INDUSTRY  : For using as dosage, circulation pump, filter press pump

3-CERAMIC INDUSTRY  : Glaze and slurry transfer

4-SHIPPING INDUSTRY  : Transferring bilge, sludge and chemicals

5-COSMETIC AND PHARMACEUTICAL INDUSTRY : For transfer cream, shampoo, gel and other chemicals

6-PACKAGING INDUSTRY : Transfer and storage of products such as glue, resins, paint, varnish, ink

ADVANTAGES:

1-Corrosion-resistant

2-Pumps can use for transferring fluids which contains particles

3-Maintenance is easy and costs are low

4-Flow rate can adjust with change inlet air pressure.

5-Pumps can work without fluids.

6-Suction depth is 6 meter.
